Description

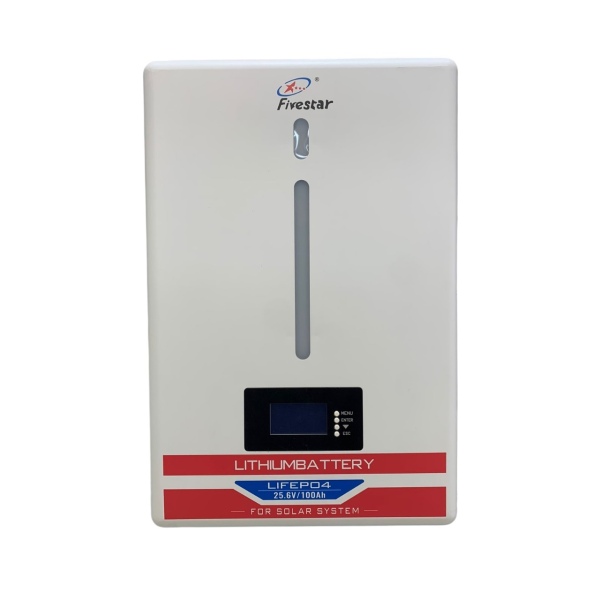

FS- LB100AH 2.56kw 25.6v 100ah Lithium ion Battery

-Higher energy density, smaller volume for household
-Support connected in parallel mode for expansion
-Photovoltaic system: This battery pack is designed for household photovoltaic systems
-Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations
-Expandability: This battery pack can be easily expanded by adding expansion battery packs in parallel connection.

– Model: FS-LB100AH/25.6VFA
-Usable Capacity: 2560WH
-Nominal Voltage: 25.6V
-Voltage Range: 21.6-29.2
-Max. Charge Current: 100A
-Max. Continuous Discharge Current: 100A
-Max. Output Power: 2500W
-Recommend Output Power: 2000W
-Display Screen: LED display
-DOD: ≥95%
-Modules Connection: 1~15 in parallel
-Communication: 485/CAN
-Ingress Protection: IP21
-Cycle Life: ≥6000
-Working Temperature Range Discharge: -10ºCto+50ºC, Charge: +0ºC+60ºC

1Year Warranty

Package Dimensions:

Product Dimension(mm) 600*400*170

Package Dimension(mm) 670*550*270

NW  32.2kgs

GW   37kgs

Package include:

1 x FS- LB100AH 2.56kw 25.6v 100ah Lithium ion Battery

1 x Communication Cable

2 x battery Cable Red + Black

4 x Mounting Screw

1 x Wall Mounting Bracket

1 x Manual Book

Warranty Condition:

A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
