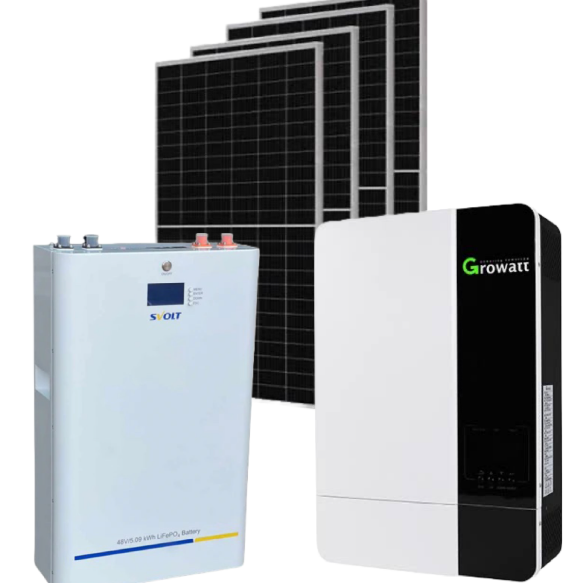

Get the ultimate energy solution with the Growatt 5kVA 5000ES Inverter, 5.4kWh SVolt Lithium Battery, 550W Solar Panels, and Installation Kit. Power your home sustainably with this comprehensive combo deal.
Specifications & Features :
Growatt 5kVA 5000ES Inverter :
- Integrated MPPT charger controller for maximum energy conversion.
- Equalization charging function for battery maintenance.
- Max PV input up to 450VDC to capture more sunlight.
- Choose between grid or solar input priority.
- Stay connected with WIFI/GPRS remote monitoring.
- Expand your system with parallel support for up to 6 inverters.
- PV & Grid Power combine to ensure a continuous power supply.
- Flexible schedule for battery charging and discharging.
General Specifications:
- Model: SPF 5000 ES
- Battery voltage: 48VDC
- Compatible with Lithium or Lead-acid batteries
Inverter Output [AC]:
- Rated Power: 5000W
- AC Voltage Regulation (Battery): 230VAC ± 5%
- Surge Power: 10000VA for 5 seconds
- Peak Efficiency: 93%
- Pure sine wave output for clean power
- Fast transfer time of 10ms – 20ms
Solar Charger:
- Maximum PV Array Power: 6000W
- MPPT Range @ Operating Voltage: 120VDC – 430VDC
- Maximum PV Array Open Circuit Voltage: 450VDC
- Maximum Solar Charge Current: 100A
AC Charger:
- AC Charge Current: 80A
- AC Input Voltage: 230VAC
- Selectable Voltage Range: 230VAC
- Auto-sensing frequency range: 50Hz/60Hz
Physical:
- IP20 protection degree
- Compact dimensions: 330 x 485 x 135mm
- Lightweight design: 12 kg
SVOLT 48V 106Ah 5.4kWh Lithium Battery:
- A-Grade Cell Technology for superior performance and reliability.
- Maintenance-free and environmentally friendly.
- Suitable for various applications, including solar energy storage.
- Built-in Battery Management System (BMS) for safety.
- High energy density: 5427.2Wh
- Long cycle life: >4000 Cycles
- Wide operating temperature range: -20°C to 65°C
LVTOPSUN 550W Solar Panels:
- Brand: LVTOPSUN
- Model Number: LVTS-144M(182MM)
- High cell efficiency: 21.2%
- Certified with CE, TUV, ISO, CQC, and CNAS
- Reliable and durable for long-term use
Solar Panel AC Installation & Mounting Kit:
- Includes essential components for installing the solar panels.
- Easy and secure installation with quality rails, cables, and hooks.
- Combiner box for efficient cable management.
- Battery cables and fuse holder included for safety.
Warranty: 5 years
